Solar package flat collector AMX2.0 8.12 m² for pitched roofs

Solar package AMX 2.0 – Flat plate collectors 8.12 m² with mounting system for pitched roofs

The AMX 2.0 solar package offers a state-of-the-art solution for environmentally friendly energy generation on pitched roofs. With a surface area of ​​8.12 m² and a specially designed mounting system, the system is ideally suited for roof pitches between 25 and 60 degrees. Thanks to advanced technologies and durable materials, the system delivers maximum energy yield – regardless of weather conditions.

Government funding – Secure up to 70% subsidy now

The solar package is eligible for funding under the federal funding program for efficient buildings – individual measures (BEG EM). You can obtain a Funding of up to 30% for purchase and installation The system is subsidized. Under certain conditions, such as combining it with other efficiency measures, up to 70% of the costs can even be subsidized. This allows the investment to pay for itself in a very short time.

Use our informative guide to heating subsidies to learn everything you need to know about funding opportunities and application procedures. This way, you can secure the maximum possible support for your project in good time.

High-performance flat plate collectors AMX 2.0

The AMX 2.0 flat-plate collectors impress with their first-class technology. The sophisticated copper pipe system in the absorber achieves excellent heat transfer, thus optimizing energy yield. Even at low temperatures or with low solar radiation, the system operates efficiently and reliably.

In combination with a combined hygienic storage tank or domestic hot water storage tank, the system stores the heat produced, making it available for use at any time. Intelligent control via the differential temperature controller ensures optimal system operation.

Robust design for durability and tightness

The collector frame is made of high-quality aluminum and manufactured using an innovative process. Because it is produced from a single piece, there are no joints, ensuring a permanently tight seal. This guarantees high reliability and durability for many years.

The collectors are also visually appealing. The combination of a simple, aluminum-colored frame and the attractive navy blue and black coating of the absorber complements almost any architectural style.

Maximum efficiency under all weather conditions

The innovative thermal insulation of the AMX 2.0 collectors minimizes heat loss and ensures excellent performance – regardless of whether it's sunny or overcast. Furthermore, the system is insensitive to extreme temperatures, making it ideally suited for different climate zones.

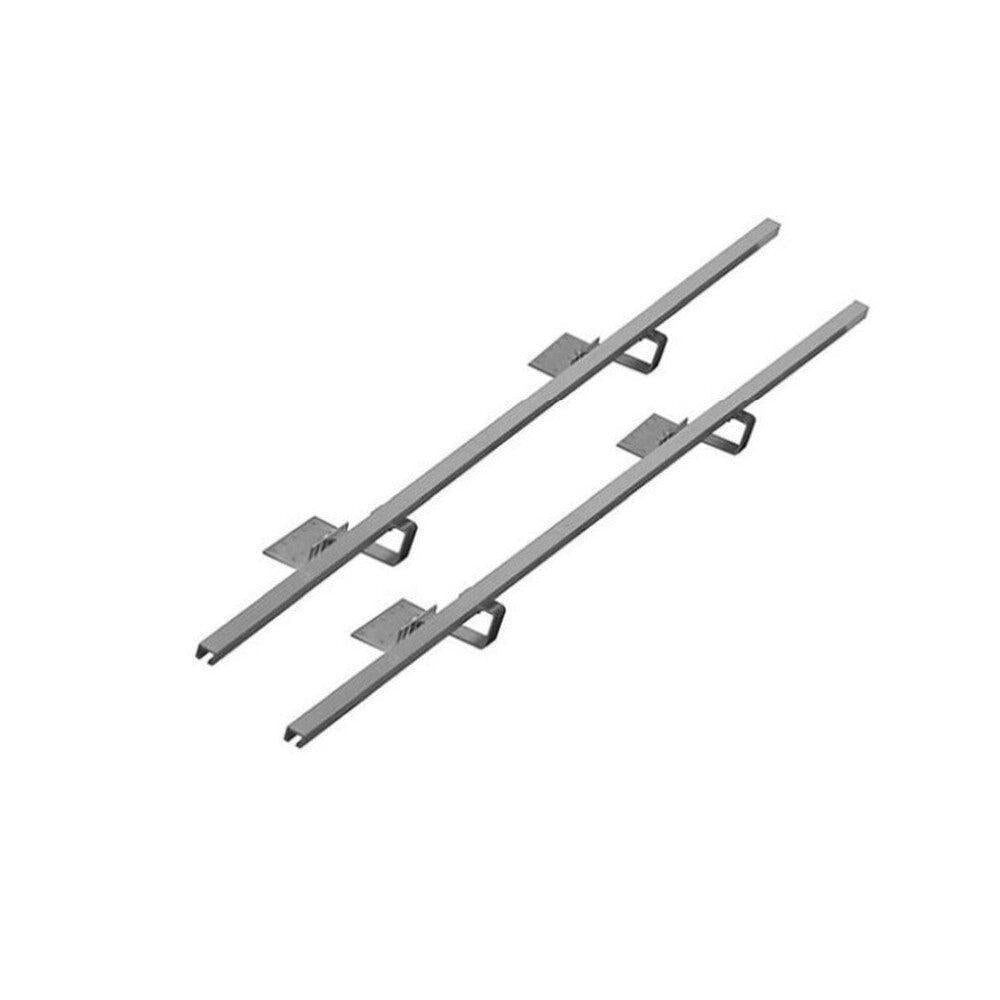

Simple and flexible assembly

The included mounting kit was specifically designed for pitched roofs, but can also be adapted for other roof types. The aluminum supports ensure stability and allow for quick and easy installation, saving time and effort.

Detailed assembly instructions guide tradespeople safely through the installation process. This makes the system suitable for both new builds and renovations.

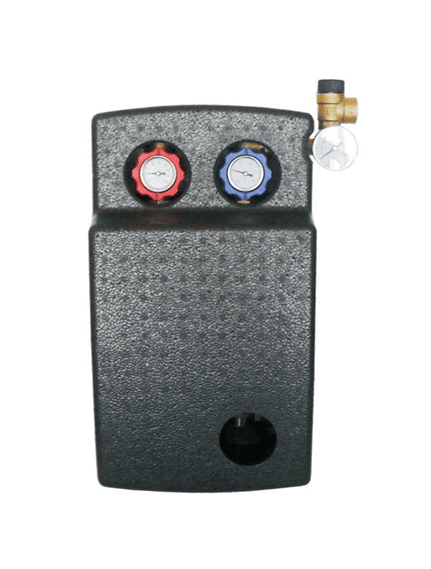

Two-way solar station GPS PWM Hydra – Efficient control

The GPS PWM Hydra solar station is a central component of the system. It ensures precise circulation of the heat transfer medium, thus guaranteeing even and energy-efficient heat distribution. Thanks to modern PWM (pulse width modulation) technology, the pump speed is optimally regulated.

Additional features such as a venting device, a pressure gauge, and a safety valve simplify maintenance. The solar station proves to be extremely robust even at high temperatures up to 110 °C and operating pressures up to 6 bar.

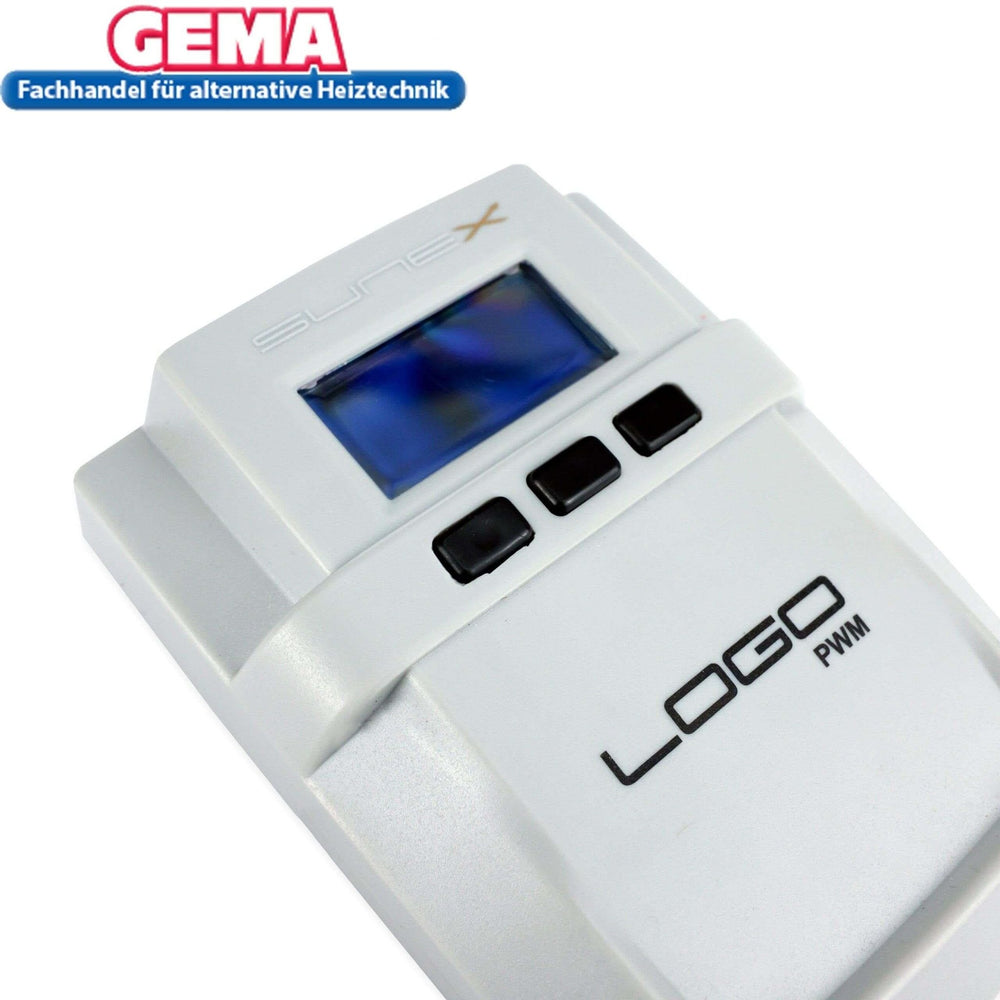

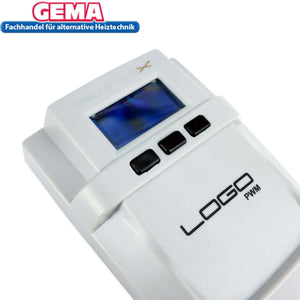

LOGO PWM solar charge controller – Convenient control

The LOGO PWM solar controller enables precise control of the solar thermal system. All operating parameters can be easily monitored and adjusted via a large, user-friendly LCD display. The innovative PWM technology ensures efficient control of the pump speed based on temperature differences.

An integrated backup system saves all settings, ensuring no data is lost even during power outages. This guarantees reliable operation at all times.

Comprehensive scope of delivery for a complete installation

The AMX 2.0 solar package is supplied as a complete set containing all essential components:

• 4 x AMX 2.0 flat plate collectors

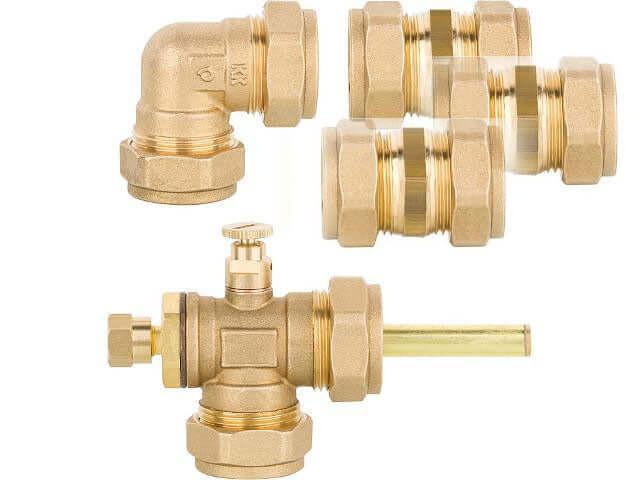

• Connection set for 4 collectors
• Mounting kit for 4 collectors

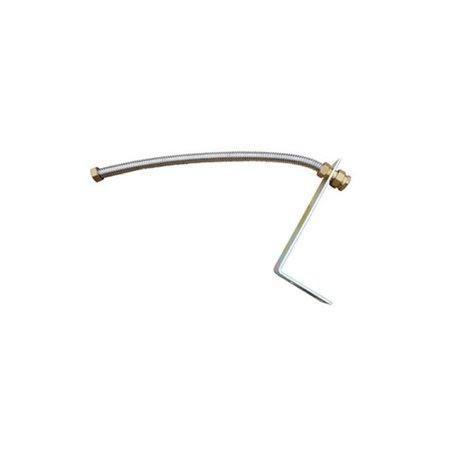

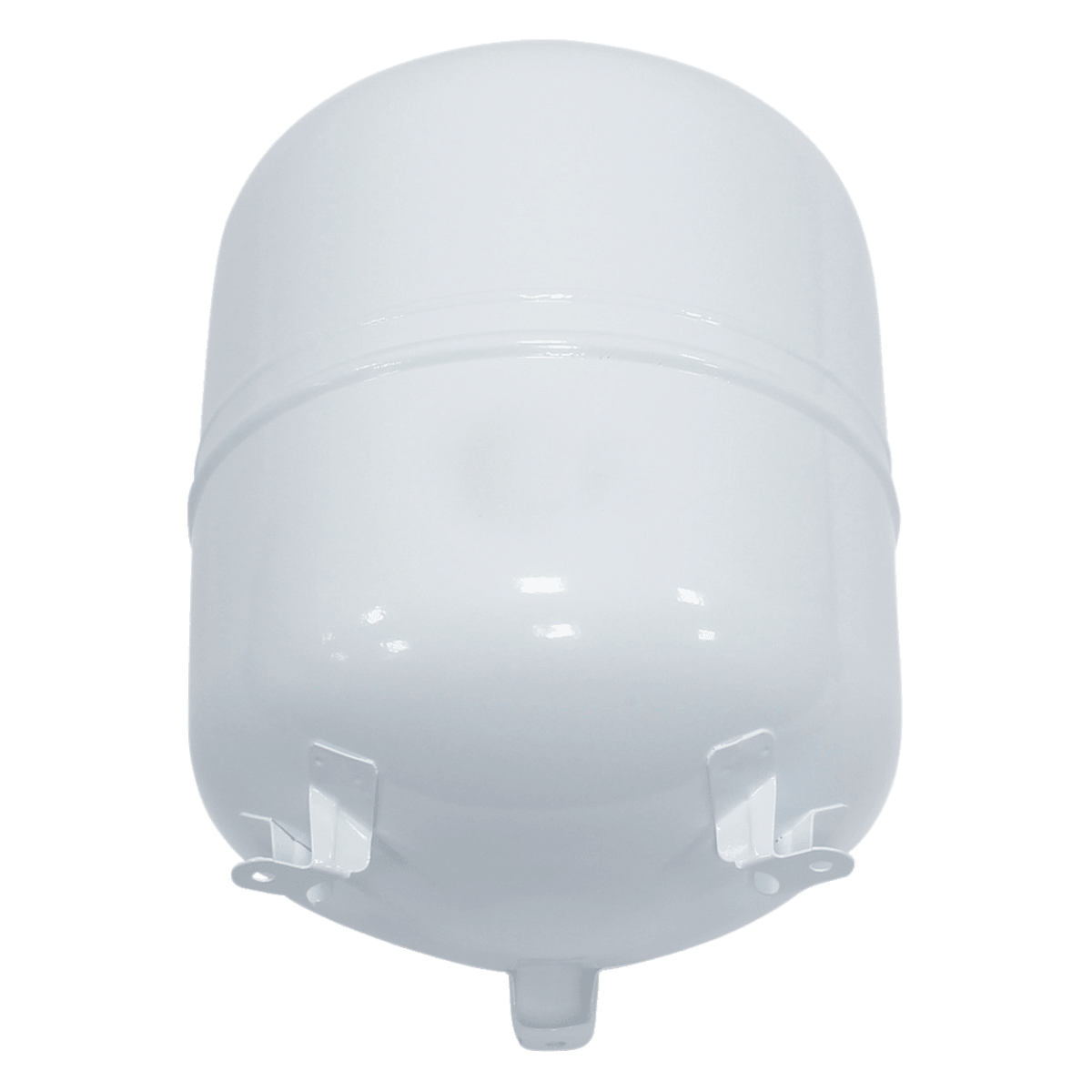

• Solar expansion vessel (24 liters) including bracket
• Sunex Solar Station GPS Wilo
• Sunex Solar Controller LOGO PWM

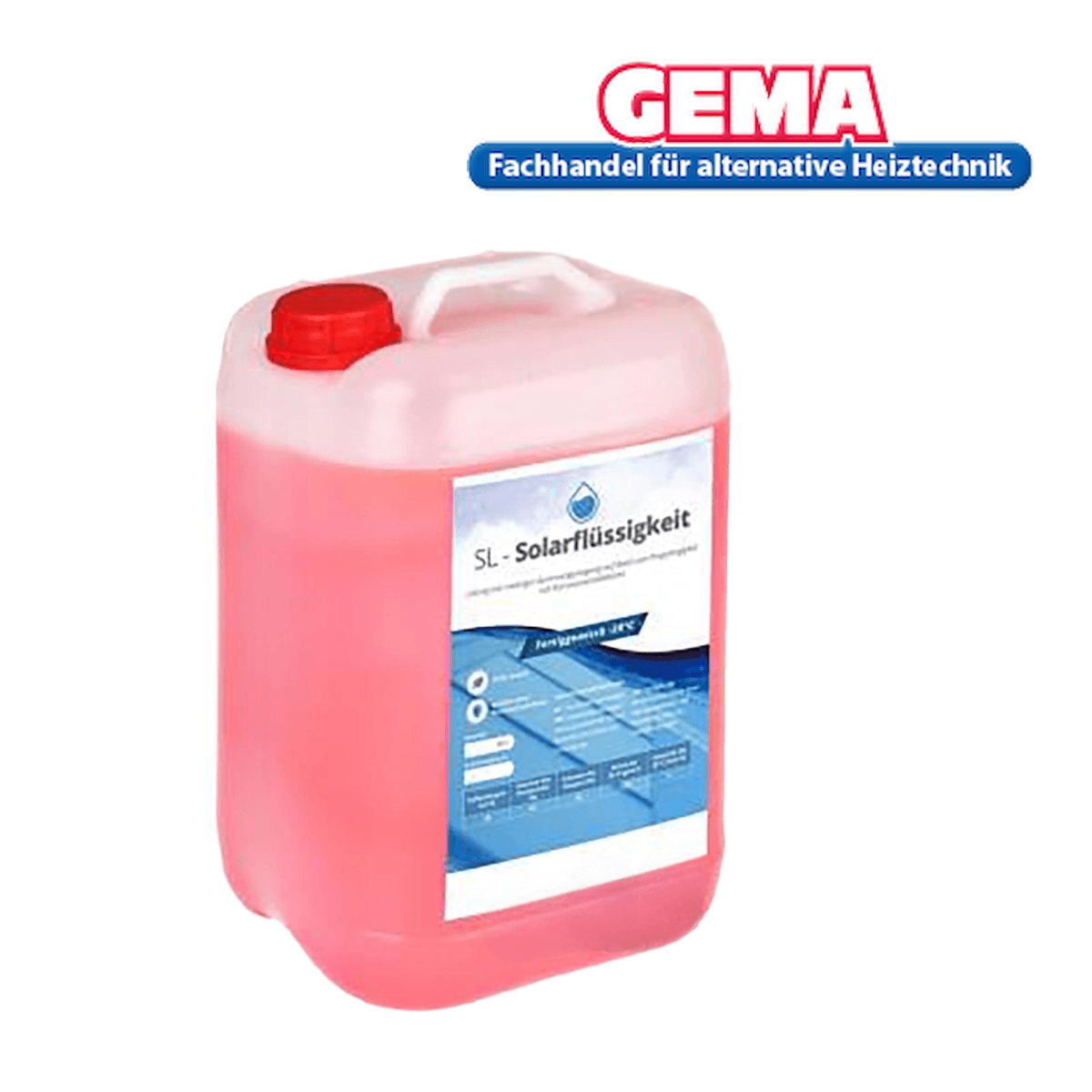

• 2 x 20 liters of solar fluid

With this comprehensive set, you are ideally equipped to easily install and commission your own solar thermal system.

Get your environmentally friendly energy source now

The AMX 2.0 solar package combines innovative technology, maximum efficiency, and easy installation into a future-proof solution for your home. Benefit not only from lower energy costs but also from government subsidies. Switch to a sustainable energy supply now and do your part for the environment!

You will also need:

• Solar line DN16 or DN20 in a suitable length
• optional Roof penetration

Download

• Product data sheet Collectors
