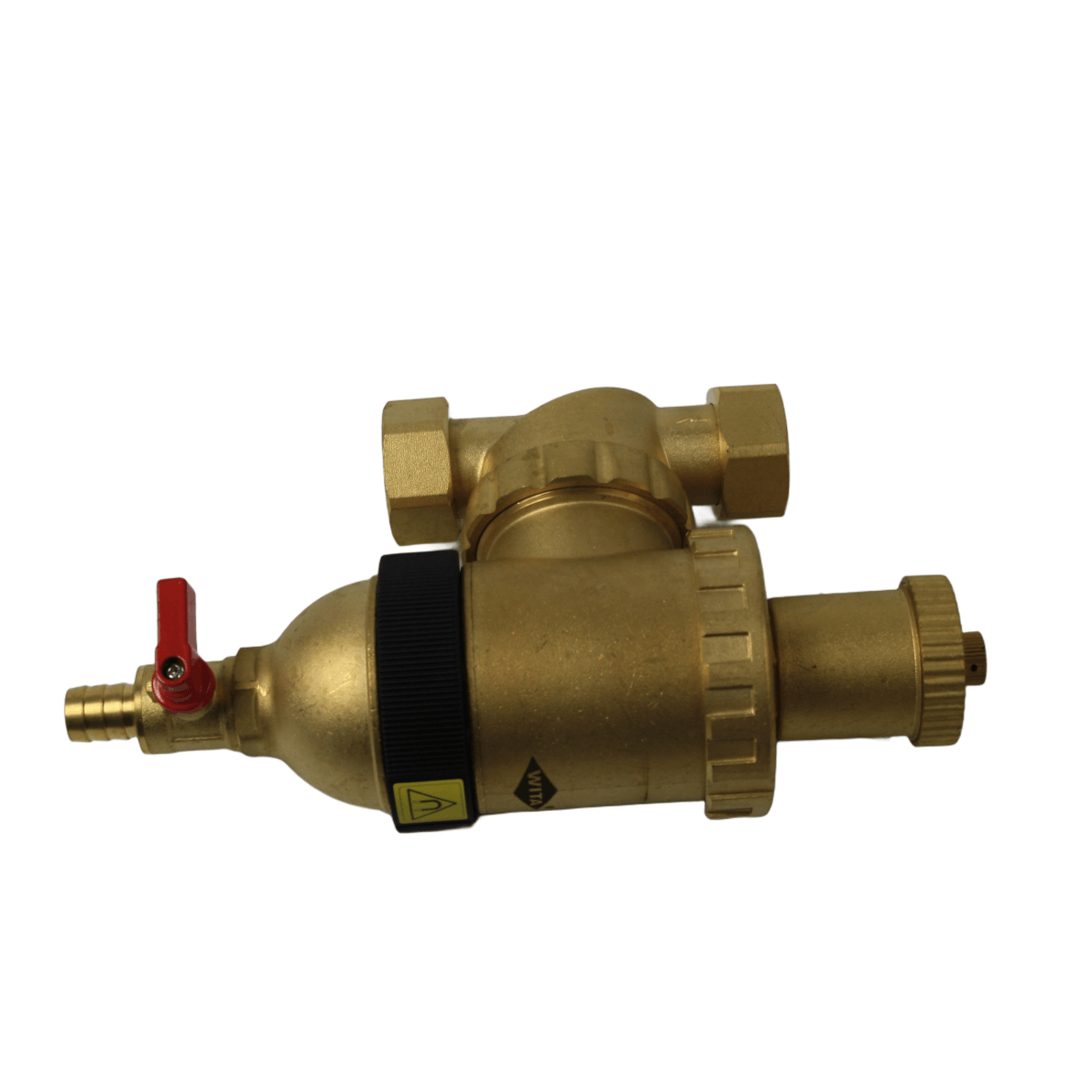

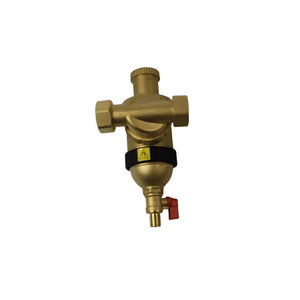

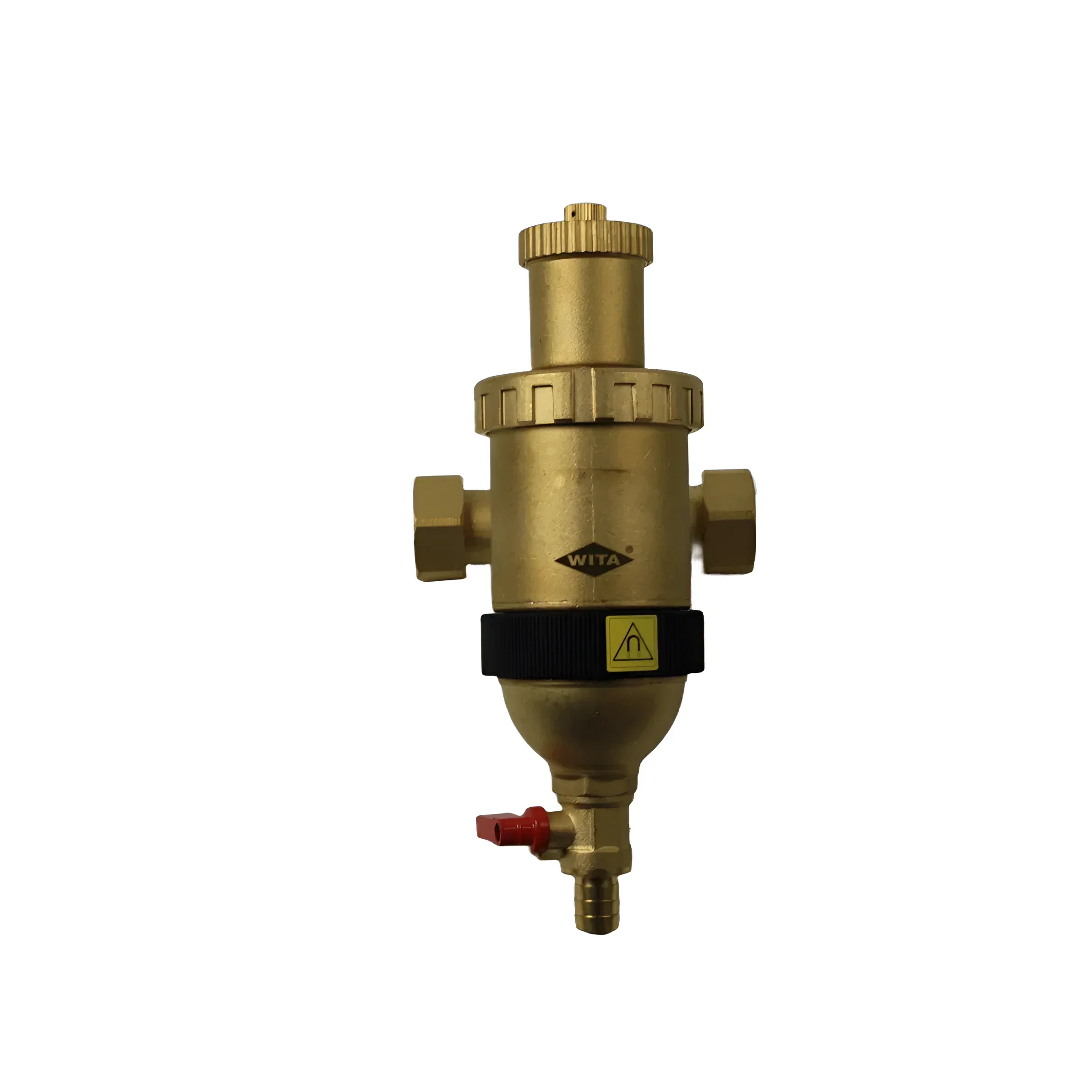

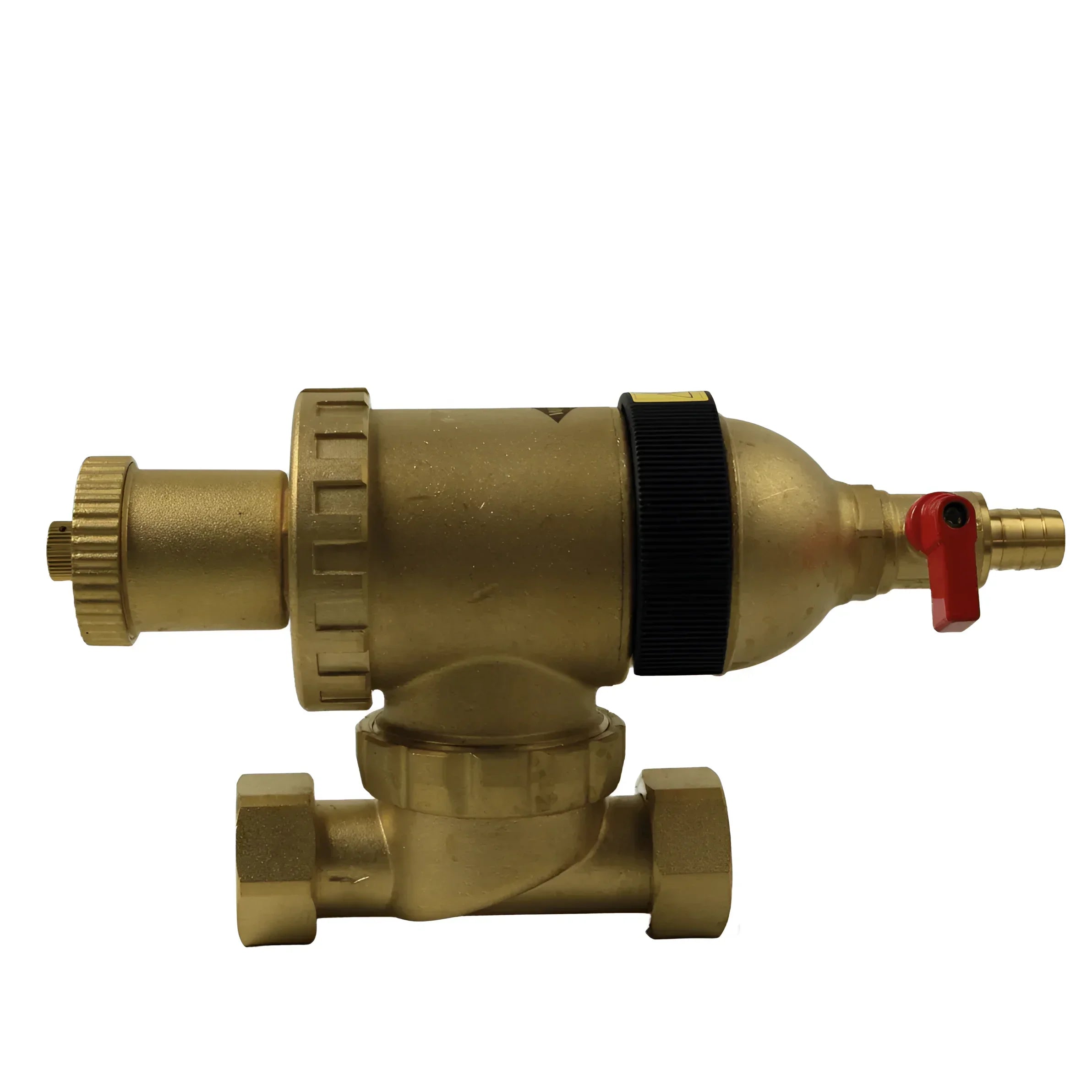

WITA trap magnetic filter made of brass with red valve for heating systems

Sludge, magnetite and microbubble separators 1"

With our new WITA Trap Magnetic and Sludge separators (sludge, magnetite, and microbubbles) ensure reliable operation and protection of your heating circulation pumps/high-efficiency pumps and valves. They are used to remove sludge, contaminants, and magnetic particles from heating, cooling, and solar systems.

Ferrous impurities (magnetite) and non-magnetic impurities, as well as sludge from the heating water (according to VDI 2035), which arise in both old and new systems, are filtered out. Another advantage of the WITA Trap magnetic and sludge separator is that the accumulated contaminants can be quickly and powerfully flushed out by simply removing the magnetic clip (even while the system is running) when the drain valve is opened.

Advantages:

WITA Trap Sludge separator microbubble separator DN 25 1" IG

• Efficient removal of dirt particles (>5 micrometers)
• Protects the pump and other sensitive system components
• Simple, quick and safe emptying of the
• Sludge separator during operation
• Protects the heating system from sludge deposits and;
• Wear and tear and thus from malfunctions or even standstill
• Protect pumps and fittings

• Installation vertically and horizontally possible (360° rotatable)

• Suitable for heating, cooling and solar systems

Technical data

• Kvs value: 4.1 m³/h
• Material: brass
• Nominal diameter: DN 25
• Connection thread: Rp 1"
• Max. operating pressure: 1 MPa/10 bar
• Operating temperature: 0-90 C°
• Size of dirt particles: >5 µm
• Pumped medium: Heating water according to VDI 2035
