Footprint MDC 230 plus heating rod 3 kW

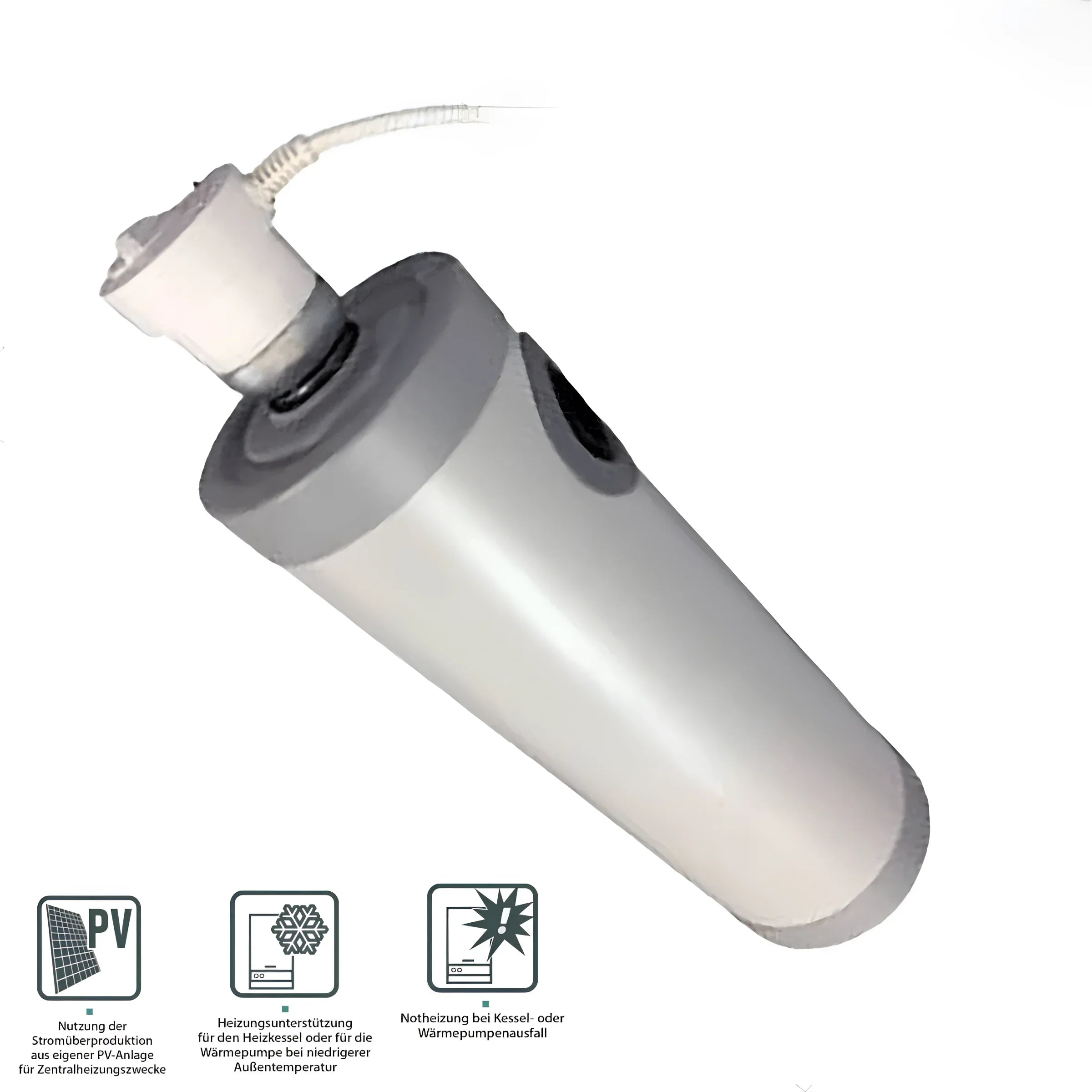

Complete package instantaneous water heater MDC 230 plus 3 kW heating element
Product overview
The complete package of Additional heating It offers a reliable and flexible addition to existing heating systems, allowing it to be used both as an emergency heater and as a backup to the main heating system. It features a robust, insulated housing with a powder-coated exterior and high-quality insulation for durability and efficient operation.
The quick installation and compact design enable easy integration into the existing heating circuit – ideal for new buildings, modernizations and even as a temporary solution in the event of a failure of the conventional heat source.
Areas of use and application
The module can be used in systems that use solid fuels, gas, oil, or heat pumps. It is also suitable for effectively utilizing excess energy from renewable sources, such as photovoltaic systems. It thus supports the constant heat demand in a variety of applications.
This module proves to be a useful additional option, particularly in weekend and holiday homes, but also in systems with temporary main heating failures. It reliably supplies the required heat, even with varying operating parameters of the heating systems.
Technical features and equipment
The Additional heating as Afterheating module It impresses with its robust raw steel interior, protected by a durable, powder-coated outer shell. Safety features, such as 50 mm thick polyurethane foam insulation and an IP44 protection rating, guarantee safe operation.
With a connection for heating elements (1 1/2" IG) and other connections, the module is clearly designed for easy integration into existing systems. Technical parameters, such as a maximum operating temperature of 90°C and an operating pressure of up to 10 bar, ensure stable and long-term operation.
Performance variants and minimum flow
The system is compatible with heating elements of various power classes, with 1.5 kW, 2.0 kW, and 3.0 kW versions available. This allows the system to be optimally tailored to individual energy needs.
Depending on the performance level, different minimum flow rates are required (86 l/h to 171 l/h) to ensure efficient operation even with varying heating requirements and to meet modern requirements for flexibility.
Advantages and added value
Thanks to its low acquisition costs and comprehensive functionality, this complete package not only impresses with its reliable heat supply, but also with its space-saving installation. Its easy handling and short installation time ensure additional convenience in everyday life.
Whether as a supplement to the Photovoltaic system or as an emergency solution in the event of a breakdown – the module increases living comfort and supports a sustainable heating strategy that makes both economic and ecological sense.
Electric heating element emergency heating 3kW 230V – Perfect heat for every need
The 3 kW electric heating element is specifically designed to efficiently heat domestic and drinking water, thus ensuring consistent comfort in both private households and commercial applications. With a smart design and high-quality workmanship, it combines safety and user-friendliness.
Made of durable stainless steel and complemented by a thermostat housing made of sturdy plastic, the heating element impresses with its durability and adaptability in a wide variety of environments.Thanks to the IPX4 protection class, the device is ideal for humid applications such as hot water tanks or heating systems.
High-quality materials and sophisticated design
The robust stainless steel construction and high-quality materials guarantee not only a long service life but also efficient performance in hot water preparation. Thanks to its compact design, the heating element integrates seamlessly into existing systems without dominating the overall appearance or space.
The intelligent isolation ensures maximum operational reliability and efficiency, while the functional design ensures easy maintenance and operation. This allows even demanding applications to be handled effortlessly.
Powerful temperature control
With a heating output of 3 kW, the heating element allows for precise adjustment of the water temperature between 5°C and 75°C. The built-in thermostat allows you to precisely control the desired temperature, while the defined switch-on hysteresis ensures consistent operation.
An additional safety temperature limiter protects against overheating, and the integrated frost protection functions make the device a reliable choice even in low outdoor temperatures. This ensures that the hot water supply is always optimally regulated.
Easy installation and universal compatibility
With an installation length of 400 mm and a connection thread of 1 1/2" AG, the heating element is suitable for a wide variety of water and hot water storage systems. The included 1.5-meter-long connection cable with a Schuko plug ensures straightforward installation.
The single-phase power supply (230V/16A) and the sophisticated design enable quick integration into existing systems, making the heating element easy and safe to install.
Reliability and security
The heating element It meets the highest safety standards and is designed for a maximum operating pressure of up to 10 bar. The use of corrosion-resistant Alloy 825 ensures reliable and long-lasting operation even under demanding conditions.
With an IPX4 protection rating, the device also offers effective protection against splash water, making it particularly suitable for use in water-rich and humid environments. This ensures safe and long-lasting support for any application.
Conclusion: Efficient, safe and comfortable
The Complete package consisting of MDC 230 after-heating module and 3 kW electric heating element combines efficient heat support with versatile application possibilities. Intelligent technology, high-quality workmanship, and easy installation ensure a consistently high level of comfort, both in the treatment of domestic and drinking water and in heating support.
Invest in this system and benefit from a sustainable, reliable and safe solution that is convincing in many areas of application – whether as a permanent supplement or as a flexible emergency heating system.
Technical data
- Connection flow and return: 1 1/4" IG
- Connection for heating element: 1 1/2" IG
- Max. permissible operating temperature: 90 °C
- Max.permissible operating pressure: 10 bar
- Housing material: raw steel inside, powder-coated outside
- Housing insulation: 50 mm polyurethane foam
- Outer shell: plastic, color: gray
- Minimum flow: 3.0 kW/171 l/h
- Suitable heating elements MDC230 module: 1.5 kW | 2.0 kW | 3.0 kW (230V)
- Inner diameter of MDC module: 60 mm
- Dimensions MDC230 (diameter x length): 161 mm x 500 mm
Scope of delivery
- Afterheating module MDC 230
- Heating element 3 kW
- Assembly and operating instructions
